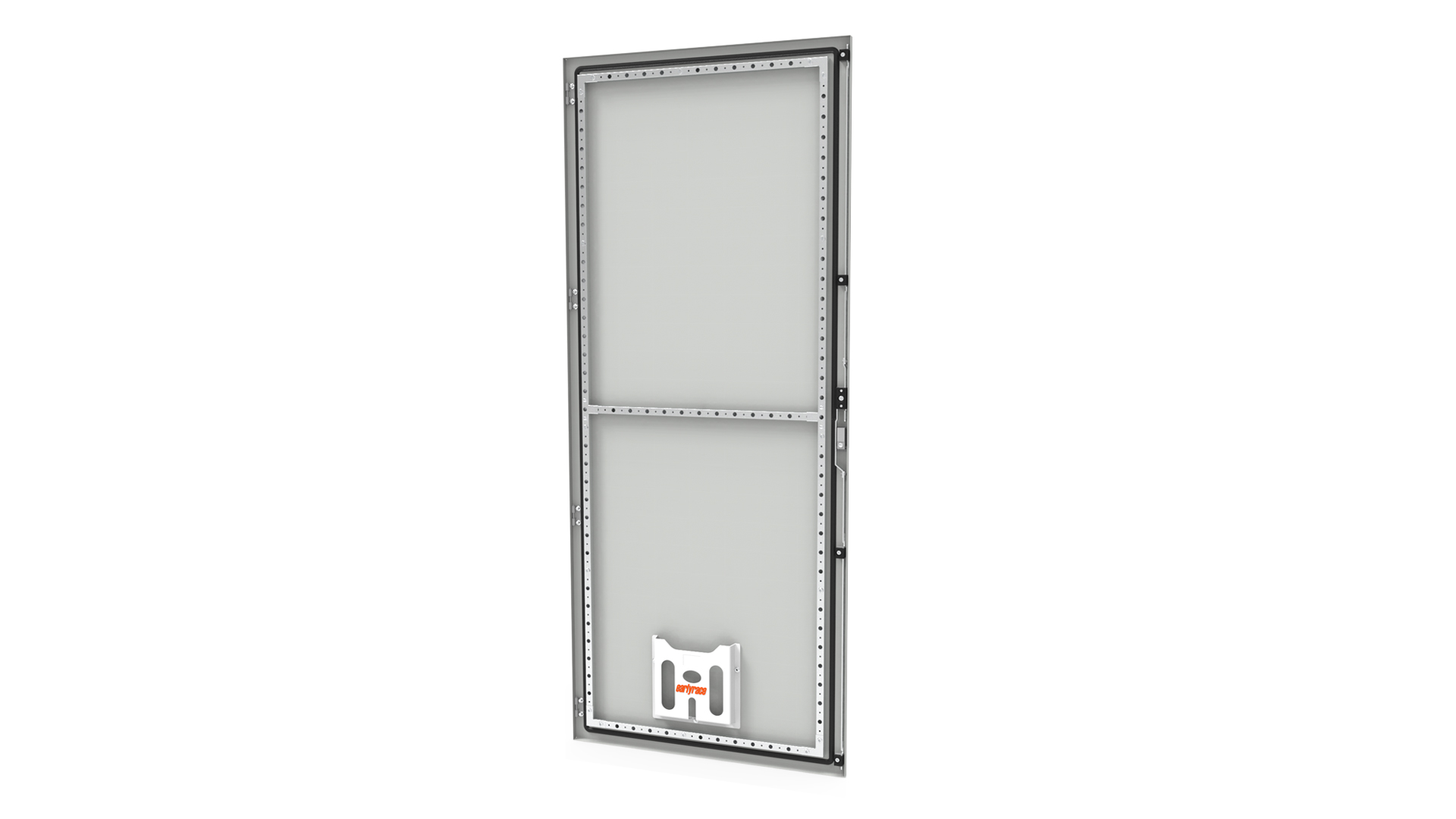

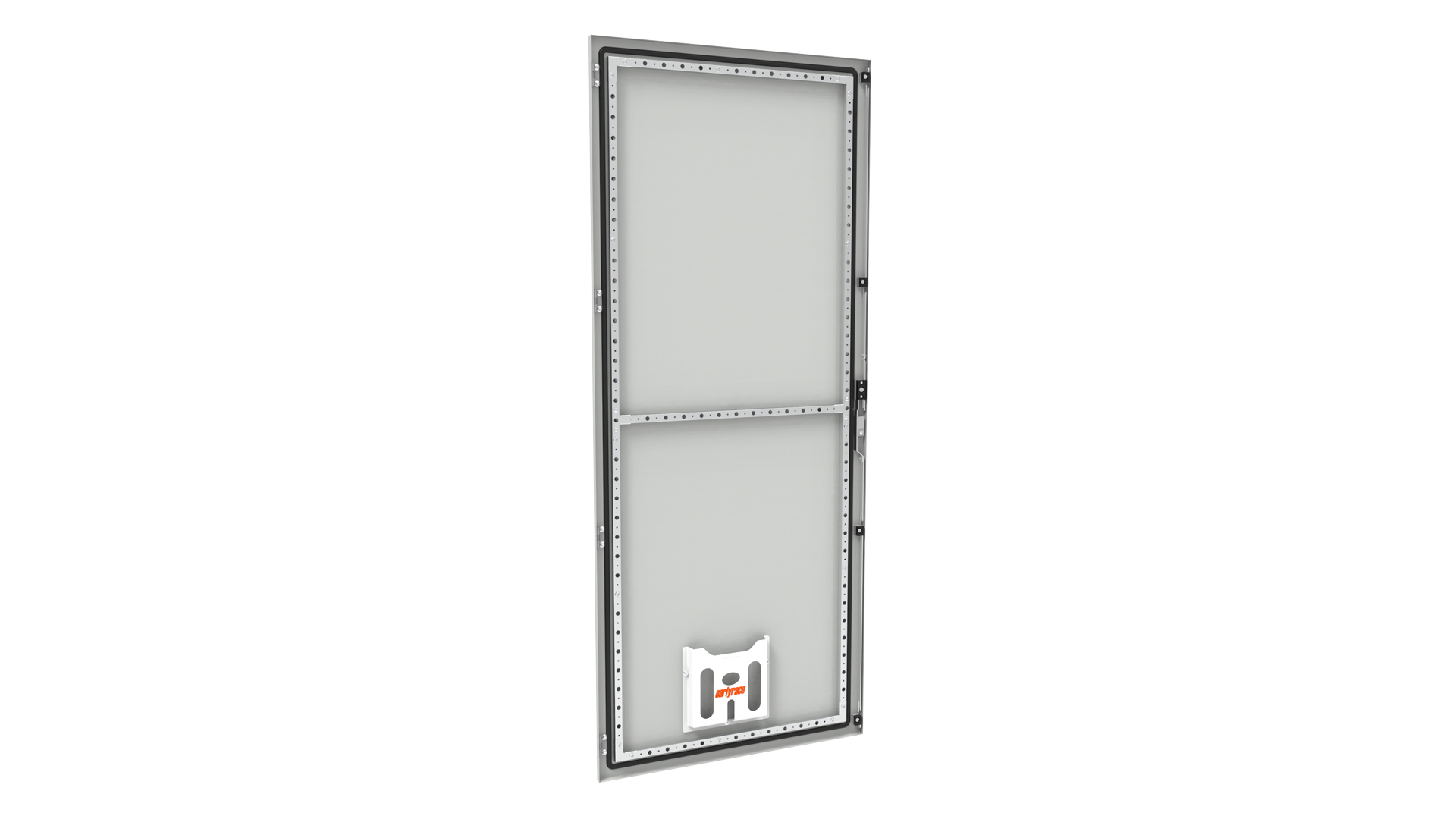

M2 Düz Ön Kapılar

MODÜLER 2 DÜZ ÖN KAPILAR
SIRA NO	ÜRÜN KODU	PANO ÖLÇÜLERİ		AĞIRLIK (kg)	PARÇA ÖLÇÜLERİ (mm)
SIRA NO	ÜRÜN KODU	EN	BOY	AĞIRLIK (kg)	A	B	C
1	2220.3491	300 mm	1000 mm	6,082 kg	293 mm	888 mm	18 mm
2	2220.3493	300 mm	1200 mm	7,113 kg	293 mm	1088 mm	18 mm
3	2220.3495	300 mm	1400 mm	8,427 kg	293 mm	1288 mm	18 mm
4	2220.3497	300 mm	1600 mm	9,458 kg	293 mm	1488 mm	18 mm
5	2220.3499	300 mm	1800 mm	10,665 kg	293 mm	1688 mm	18 mm
6	2220.3501	300 mm	2000 mm	11,696 kg	293 mm	1888 mm	18 mm
7	2220.3503	300 mm	2100 mm	12,382 kg	293 mm	1988 mm	18 mm
8	2220.3505	300 mm	2200 mm	12,897 kg	293 mm	2088 mm	18 mm

9	2220.3511	400 mm	1000 mm	7,949 kg	393 mm	888 mm	18 mm
10	2220.3513	400 mm	1200 mm	9,216 kg	393 mm	1088 mm	18 mm
11	2220.3515	400 mm	1400 mm	10,765 kg	393 mm	1288 mm	18 mm
12	2220.3517	400 mm	1600 mm	12,032 kg	393 mm	1488 mm	18 mm
13	2220.3519	400 mm	1800 mm	13,475 kg	393 mm	1688 mm	18 mm
14	2220.3521	400 mm	2000 mm	14,742 kg	393 mm	1888 mm	18 mm
15	2220.3523	400 mm	2100 mm	15,545 kg	393 mm	1988 mm	18 mm
16	2220.3525	400 mm	2200 mm	16,178 kg	393 mm	2088 mm	18 mm

17	2220.3531	500 mm	1000 mm	9,183 kg	493 mm	888 mm	18 mm
18	2220.3533	500 mm	1200 mm	10,685 kg	493 mm	1088 mm	18 mm
19	2220.3535	500 mm	1400 mm	12,470 kg	493 mm	1288 mm	18 mm
20	2220.3537	500 mm	1600 mm	13,973 kg	493 mm	1488 mm	18 mm
21	2220.3539	500 mm	1800 mm	15,652 kg	493 mm	1688 mm	18 mm
22	2220.3541	500 mm	2000 mm	17,154 kg	493 mm	1888 mm	18 mm
23	2220.3543	500 mm	2100 mm	18,076 kg	493 mm	1988 mm	18 mm
24	2220.3545	500 mm	2200 mm	18,827 kg	493 mm	2088 mm	18 mm

25	2220.3551	600 mm	1000 mm	10,586 kg	593 mm	888 mm	18 mm
26	2220.3553	600 mm	1200 mm	12,324 kg	593 mm	1088 mm	18 mm
27	2220.3555	600 mm	1400 mm	14,345 kg	593 mm	1288 mm	18 mm
28	2220.3557	600 mm	1600 mm	16,084 kg	593 mm	1488 mm	18 mm
29	2220.3559	600 mm	1800 mm	17,999 kg	593 mm	1688 mm	18 mm
30	2220.3561	600 mm	2000 mm	19,737 kg	593 mm	1888 mm	18 mm
31	2220.3563	600 mm	2100 mm	20,776 kg	593 mm	1988 mm	18 mm
32	2220.3565	600 mm	2200 mm	21,645 kg	593 mm	2088 mm	18 mm

33	2220.3571	700 mm	1000 mm	12,004 kg	693 mm	888 mm	18 mm
34	2220.3573	700 mm	1200 mm	13,978 kg	693 mm	1088 mm	18 mm
35	2220.3575	700 mm	1400 mm	16,235 kg	693 mm	1288 mm	18 mm
36	2220.3577	700 mm	1600 mm	18,209 kg	693 mm	1488 mm	18 mm
37	2220.3579	700 mm	1800 mm	20,360 kg	693 mm	1688 mm	18 mm
38	2220.3581	700 mm	2000 mm	22,334 kg	693 mm	1888 mm	18 mm
39	2220.3583	700 mm	2100 mm	23,491 kg	693 mm	1988 mm	18 mm
40	2220.3585	700 mm	2200 mm	24,478 kg	693 mm	2088 mm	18 mm

41	2220.3591	800 mm	1000 mm	13,238 kg	793 mm	888 mm	18 mm
42	2220.3593	800 mm	1200 mm	15,448 kg	793 mm	1088 mm	18 mm
43	2220.3595	800 mm	1400 mm	17,941 kg	793 mm	1288 mm	18 mm
44	2220.3597	800 mm	1600 mm	20,150 kg	793 mm	1488 mm	18 mm
45	2220.3599	800 mm	1800 mm	22,537 kg	793 mm	1688 mm	18 mm
46	2220.3601	800 mm	2000 mm	24,747 kg	793 mm	1888 mm	18 mm
47	2220.3603	800 mm	2100 mm	26,022 kg	793 mm	1988 mm	18 mm
48	2220.3605	800 mm	2200 mm	27,127 kg	793 mm	2088 mm	18 mm

49	2220.3611	900 mm	1000 mm	14,471 kg	893 mm	888 mm	18 mm
50	2220.3613	900 mm	1200 mm	16,917 kg	893 mm	1088 mm	18 mm
51	2220.3615	900 mm	1400 mm	19,646 kg	893 mm	1288 mm	18 mm
52	2220.3617	900 mm	1600 mm	22,091 kg	893 mm	1488 mm	18 mm
53	2220.3619	900 mm	1800 mm	24,714 kg	893 mm	1688 mm	18 mm
54	2220.3621	900 mm	2000 mm	27,159 kg	893 mm	1888 mm	18 mm
55	2220.3623	900 mm	2100 mm	28,552 kg	893 mm	1988 mm	18 mm
56	2220.3625	900 mm	2200 mm	29,775 kg	893 mm	2088 mm	18 mm

57	2220.3631	1000 mm	1000 mm	15,705 kg	993 mm	888 mm	18 mm
58	2220.3633	1000 mm	1200 mm	18,386 kg	993 mm	1088 mm	18 mm
59	2220.3635	1000 mm	1400 mm	21,351 kg	993 mm	1288 mm	18 mm
60	2220.3637	1000 mm	1600 mm	24,032 kg	993 mm	1488 mm	18 mm
61	2220.3639	1000 mm	1800 mm	26,890 kg	993 mm	1688 mm	18 mm
62	2220.3641	1000 mm	2000 mm	29,572 kg	993 mm	1888 mm	18 mm
63	2220.3643	1000 mm	2100 mm	31,082 kg	993 mm	1988 mm	18 mm
64	2220.3645	1000 mm	2200 mm	32,423 kg	993 mm	2088 mm	18 mm
